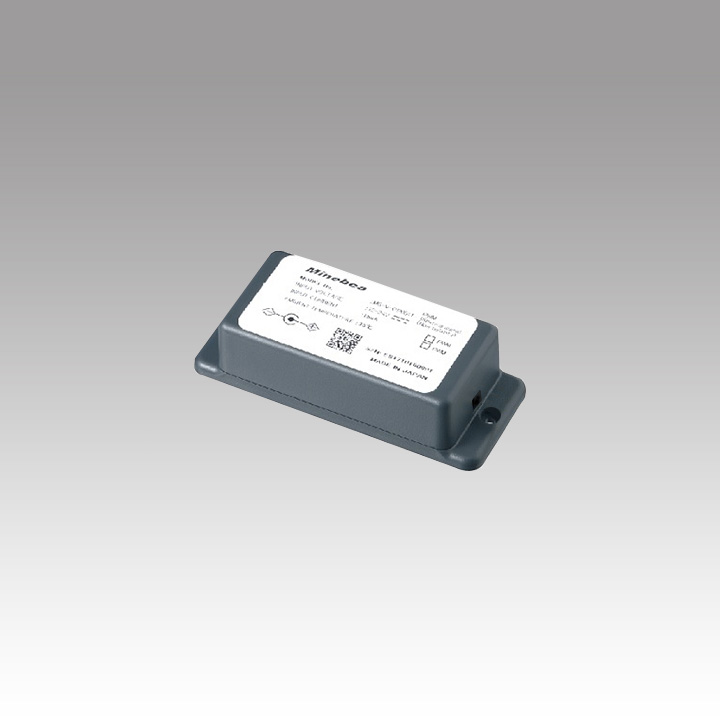

DMX Control Bridge Box
MS-V-OP0010-AA

Option

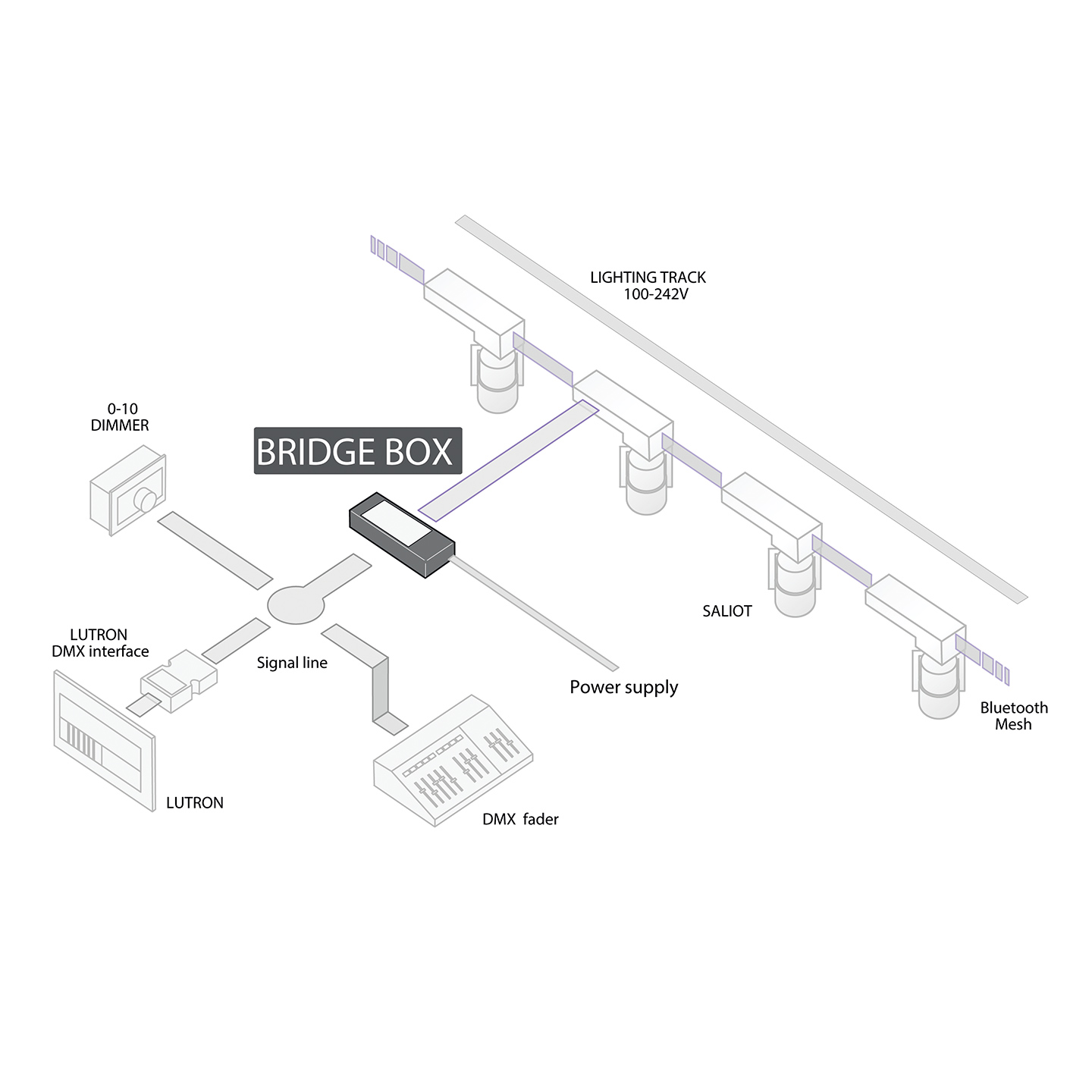

Relay connectable to existing lighting adjustment systems

Using this special relay makes it possible to pan, tilt, adjust tone or angle, as well as adjust brightness.
(Note that a separate channel for each function is required.)
*Please contact us for details.

TECHNICAL DATA

Model Number: MS-V-OP0010-AA
Weight: 120g
Input Voltage: DC12V
Dimension: Width 66mm x Length 150mm x Height 26mm
Use Location: In door use only (DO NOT install in a location such as behind the wall or ceiling. Do not expose to water, steam, direct sunlight, corrosive gas, vibration, or condensation.)
Control Signal Input: DMX512-A (Initial setting is 2ch occupation: (1) dimming, (2) toning.)
Number of Saved Scenes: 16 Scenes
Controller: iOS 10 or Later (iPhone, iPad and iPod touch)
Communication Specifications: Bluetooth4.0
Communication Distance: Communication Distance: About 20m (without any communication obstacles around)

Necessary External Components
1. AC Adapter Output voltage: 12VDC, Output current: 0.5A or more, DC Plug: PL03B, recommend UL listed.
2. DMX signal line: LAN cable (RJ 45) recommended, in the case of XLR connector a conversion adapter
from XLR to RJ 45 is required.
