SALIOT Brand New Model MS-S3 | MinebeaMitsumi Inc.

Wireless Movable Type mallest and Lightest
Compact Spot Light of Beautiful Light

POINT

FUNCTION

SPECIFICATION

USE CASE

POINT

The simple and compact design with less uneven surfaces suits to various atmosphere.
※ W:179 / H:221 / φ53

The light distribution angle can be adjusted by turning the edge of the light.
The 4 levels of adjustments with click feeling allow you to easily adjust the distribution angle according to the preference.
The light range can be adjusted to suit the purpose.

You can easily control the orientation, brightness, light color, and scene re-creation with the dedicated remote controller.

FUNCTION

01

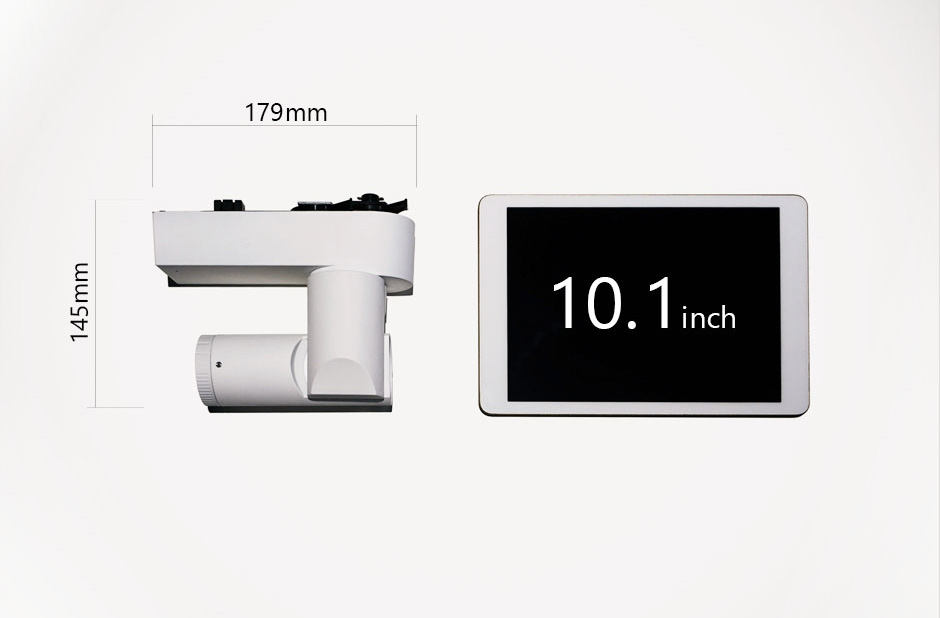

Size

Wireless Movable Type Spot Light of Smallest and Lightest Class

W : 179 / H : 221 / φ53 (mm) / 0.8kg
02

Moving

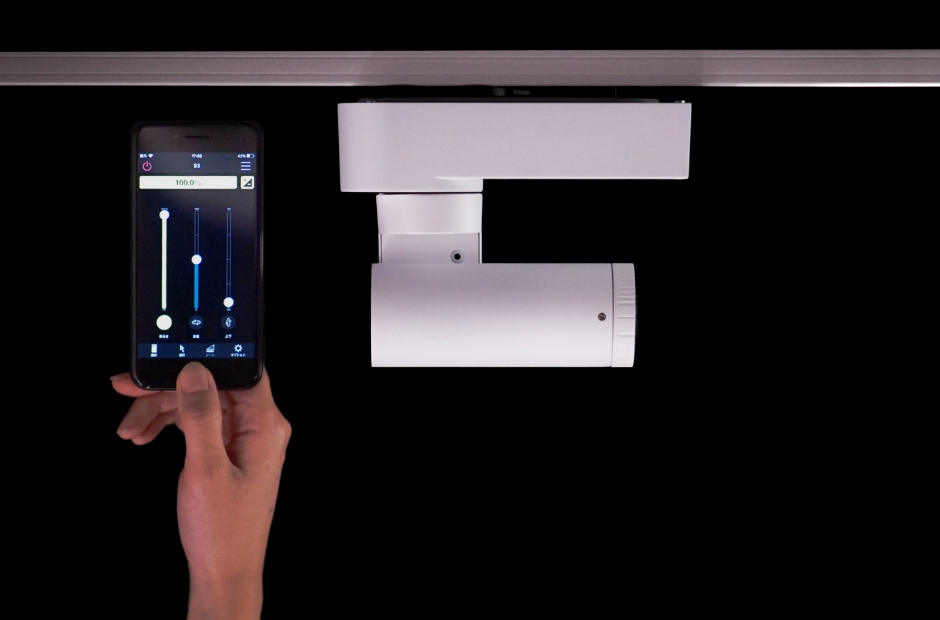

The dedicated application and remote controller adjust the brightness and the direction of the light smoothly.

Movement Angle(deg): Pan 0-180°　Tilt ±90°
Dimming Range: 1-100%
03

Beam Angle

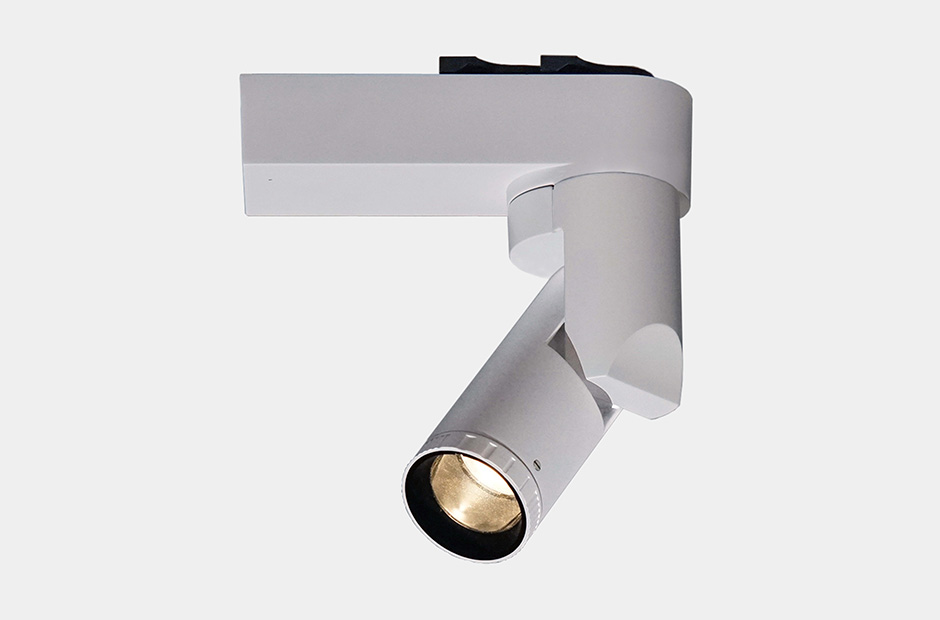

The light Distribution angle can be adjusted by turning the edge of the light.

Beam Angle: (Dimming type) Narrow 16°-Wide 28°　(CCT Tunable type) Narrow18°-Wide 28°
04

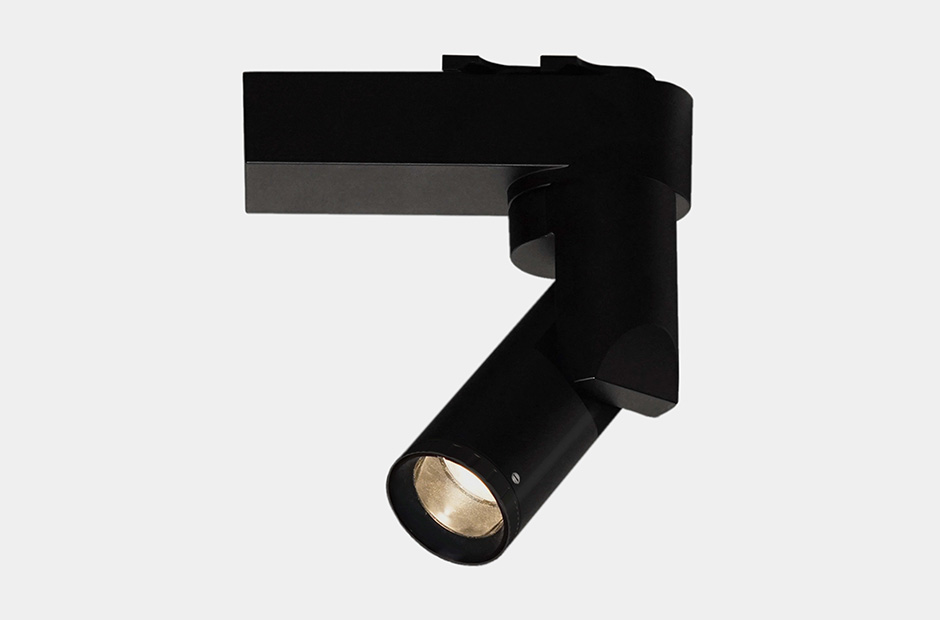

Body Color

White and Black
05

Schedule

The accessory "Timer BRIDGE BOX" can change the lighting automatically according to the schedule.
06

CCT Tunable

S3 series with tone control (2700K-5000K)

SPECIFICATION












Ra90
Ra97
Ra93 CCT Tunable
Input Power
Ra90
19W（22W）
Ra97
19W（22W）
Ra93 CCT Tunable
16W（19W）
Input Voltage
Ra90
100V
Ra97
100V
Ra93 CCT Tunable
100V
Size
Ra90
W : 179 / H : 221 /
 φ53 (mm)
Ra97
W : 179 / H : 221 /
 φ53 (mm)
Ra93 CCT Tunable
W : 179 / H : 221 /
 φ53 (mm)
Weight
Ra90
0.8kg
Ra97
0.8kg
Ra93 CCT Tunable
0.8kg
Bean Angel
Ra90
Narrow 16° ～ Wide 28°
(3000K)
Light Distribution
※Distribution：「(3000K)」
Ra97
Narrow 16° ～ Wide 28°
(3000K)
Light Distribution
※Distribution：「(3000K)」
Ra93 CCT Tunable
Narrow 18° ～ Wide 28°
(2700K)
Light Distribution

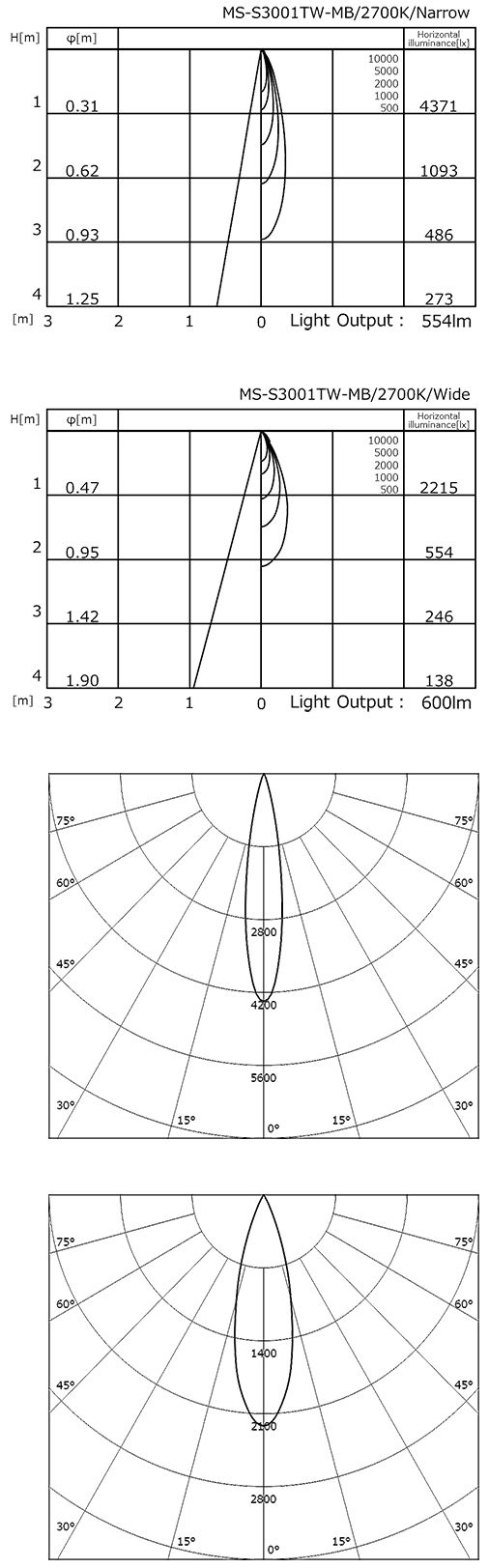

※Distribution：「(2700K)」
※Distribution：「(3500K)」
※Distribution：「(5000K)」
(3000K)
(3000K)
(3500K)
(5000K)
Movement Angle
(deg)
Ra90
PAN 0 ～ 180°/TILT ±90°
Ra97
PAN 0 ～ 180°/TILT ±90°
Ra93 CCT Tunable
PAN 0 ～ 180°/TILT ±90°
CCT
Ra90
2700K / 3000K / 3500K / 4000K
Ra97
3000K / 3500K / 4000K
Ra93 CCT Tunable
2700K ～ 5000K
Dimming Range
Ra90
1 ～ 100％
Ra97
1 ～ 100％
Ra93 CCT Tunable
1 ～ 100％
Flux
Ra90
(3000K) Narrow 931lm
/ Wide 990lm
Ra90 Model


													CCT
													Body Color
													Product Code



													(2700K)
													White
													MS-S3001AW-MB


													Black
													MS-S3001AB-MB


													(3000K)
													White
													MS-S3001LW-MB


													Black
													MS-S3001LB-MB


													(3500K)
													White
													MS-S3001MW-MB


													Black
													MS-S3001MB-MB


													(4000K)
													White
													MS-S3001WW-MB


													Black
													MS-S3001WB-MB



Ra97
(3000K) Narrow 831lm
/ Wide 841lm
Ra97 Model


													CCT
													Body Color
													Product Code



													(3000K)
													White
													MS-S3002LW-MB


													Black
													MS-S3002LB-MB


													(3500K)
													White
													MS-S3002MW-MB


													Black
													MS-S3002MB-MB


													(4000K)
													White
													MS-S3002WW-MB


													Black
													MS-S3002WB-MB



Ra93 CCT Tunable
(2700K) Narrow 554lm / Wide 600lm
(5000K) Narrow 767lm / Wide 828lm
CCT Tunable Model


													CCT
													Body Color
													Product Code



													(2700K)～(5000K)
													White
													MS-S3001TW-MB


													Black
													MS-S3001TB-MB



Ra90 Model
Ra97 Model
Ra90CCT Tunable Model


											CCT
											Body Color
											Product Code



											(2700K)
											White
											MS-S3001AW-MB


											Black
											MS-S3001AB-MB


											(3000K)
											White
											MS-S3001LW-MB


											Black
											MS-S3001LB-MB


											(3500K)
											White
											MS-S3001MW-MB


											Black
											MS-S3001MB-MB


											(4000K)
											White
											MS-S3001WW-MB


											Black
											MS-S3001WB-MB





											CCT
											Body Color
											Product Code



											(3000K)
											White
											MS-S3002LW-MB


											Black
											MS-S3002LB-MB


											(3500K)
											White
											MS-S3002MW-MB


											Black
											MS-S3002MB-MB


											(4000K)
											White
											MS-S3002WW-MB


											Black
											MS-S3002WB-MB





											CCT
											Body Color
											Product Code



											(2700K)～(5000K)
											White
											MS-S3001TW-MB


											Black
											MS-S3001TB-MB




CCT	Body Color	Product Code
(2700K)	White	MS-S3001AW-MB
Black	MS-S3001AB-MB
(3000K)	White	MS-S3001LW-MB
Black	MS-S3001LB-MB
(3500K)	White	MS-S3001MW-MB
Black	MS-S3001MB-MB
(4000K)	White	MS-S3001WW-MB
Black	MS-S3001WB-MB

CCT	Body Color	Product Code
(3000K)	White	MS-S3002LW-MB
Black	MS-S3002LB-MB
(3500K)	White	MS-S3002MW-MB
Black	MS-S3002MB-MB
(4000K)	White	MS-S3002WW-MB
Black	MS-S3002WB-MB

CCT	Body Color	Product Code
(2700K)～(5000K)	White	MS-S3001TW-MB
Black	MS-S3001TB-MB

CCT	Body Color	Product Code
(2700K)	White	MS-S3001AW-MB
Black	MS-S3001AB-MB
(3000K)	White	MS-S3001LW-MB
Black	MS-S3001LB-MB
(3500K)	White	MS-S3001MW-MB
Black	MS-S3001MB-MB
(4000K)	White	MS-S3001WW-MB
Black	MS-S3001WB-MB

CCT	Body Color	Product Code
(3000K)	White	MS-S3002LW-MB
Black	MS-S3002LB-MB
(3500K)	White	MS-S3002MW-MB
Black	MS-S3002MB-MB
(4000K)	White	MS-S3002WW-MB
Black	MS-S3002WB-MB

CCT	Body Color	Product Code
(2700K)～(5000K)	White	MS-S3001TW-MB
Black	MS-S3001TB-MB

USE CASE

The application adjusts the direction of the light of SALIOT.

It is recommended for events, and shops and show windows that have frequent changes in their layout.
The scene and timer function can change the lighting at a specific time.

The application adjusts the direction of the light of SALIOT.

The small and less-space taking lighting is not oppressing even if the ceiling height is close to your sight.
It is easy to make adjustments that suit events and seasons.
